16m Rooflight Blind for NHS Surgery
Bespoke motorised skylight blind engineered for a complex angled ceiling
16-metre electric rooflight blind designed to align with a 6.4° ceiling angle in an NHS surgery.
Location
Edmonton,
London, UK
Sector
Healthcare / Hospital
Scale
16m electric rooflight blind
Scope
Design, supply and installation
Products
Motorised skylight blind, cubicle curtain track
Stakeholders
NHS surgery, main contractor
Location
London, UK
Sector
Healthcare / Hospital
Scale
16m electric rooflight blind
Scope
Design, supply and installation
Products
Motorised skylight blind, cubicle curtain track
Clients
NHS surgery, main contractor
The Challenge

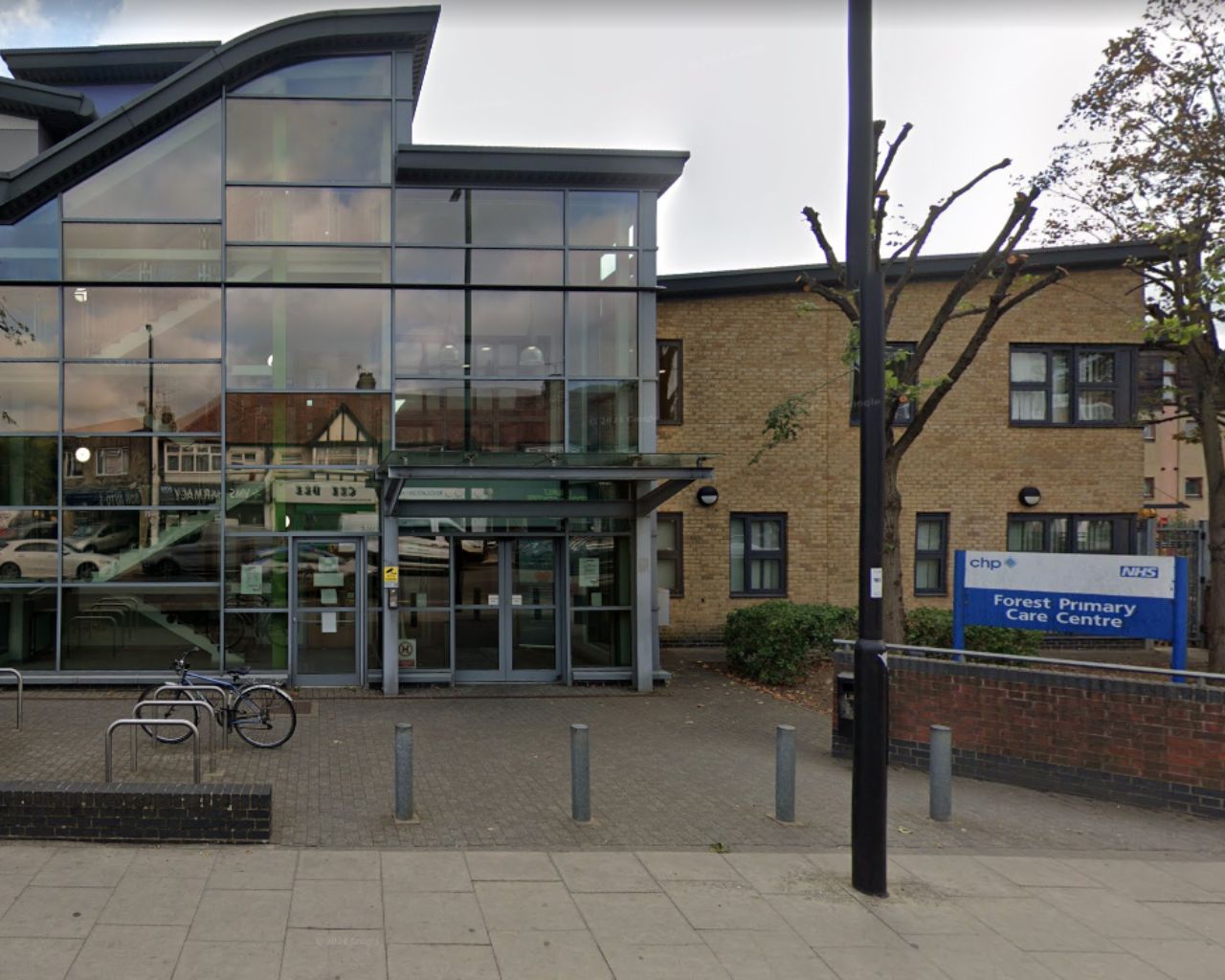

This project involved a new NHS surgery with a large rooflight opening and an angled ceiling design.
The ceiling ran at a 6.4° angle, requiring the blind to align precisely so the fabric and ceiling formed a continuous visual line when extended.
Blinds needed to operate in perfect synchronisation, ensuring consistent blackout performance across multiple openings.
The scale added further complexity. At over 16 metres, the blind exceeded typical system limits, requiring a solution capable of maintaining tension, stability and smooth operation across its full span.
The system also needed to deliver effective solar control within a clinical environment without compromising the architectural design.
System Design

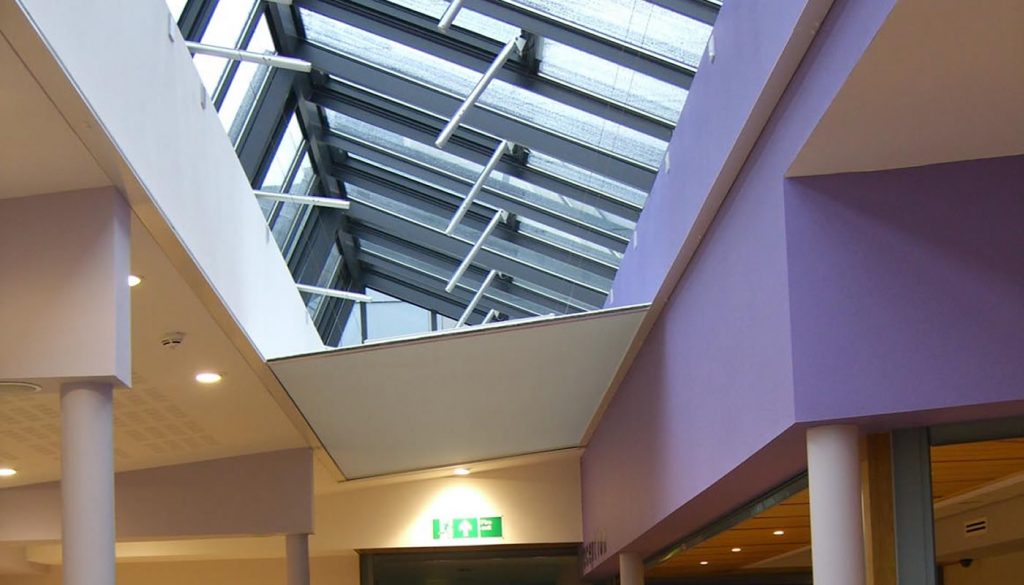

A bespoke motorised rooflight blind was developed to span the full opening.
The headbox was angled to match the ceiling pitch, ensuring the blind fabric aligned cleanly with the architectural form.
Integration
The system was designed for reliable and simple operation.
- Motorised control for smooth, consistent movement
- Integrated within the ceiling structure
Bespoke Engineering
The 16m span required a non-standard design approach.
The system was engineered to maintain fabric tension and stability across the full width while ensuring consistent performance over time.
Fabric & Performance
A performance-led approach was applied to the fabric selection.
- Solar control across large glazed area
- Reduced glare within clinical spaces
Delivery & Installation
The Outcome
The completed blind delivers effective solar control across a large rooflight while maintaining alignment with the angled ceiling.
When extended, the fabric follows the ceiling line, preserving the architectural intent of the space.
Despite its size, the system operates smoothly and reliably, supporting long-term use within a healthcare environment.
The result is a high-performance solution that balances scale, function and design.
