Anti-Ligature Magnetic Cubicle Tracking
The Kestrel® anti-ligature cubicle track system is engineered for environments where enhanced safety is essential. Using magnetic load-release brackets and rigid aluminium track profiles, the system provides reliable patient privacy while removing fixed ligature points. Widely used in healthcare facilities worldwide, it delivers dependable performance with compliant installation and maintenance procedures.
Anti-Ligature Curtain Track Safety Design
Kestrel® is a specialist anti-ligature curtain track system designed for healthcare environments requiring magnetic load-release safety mechanisms.

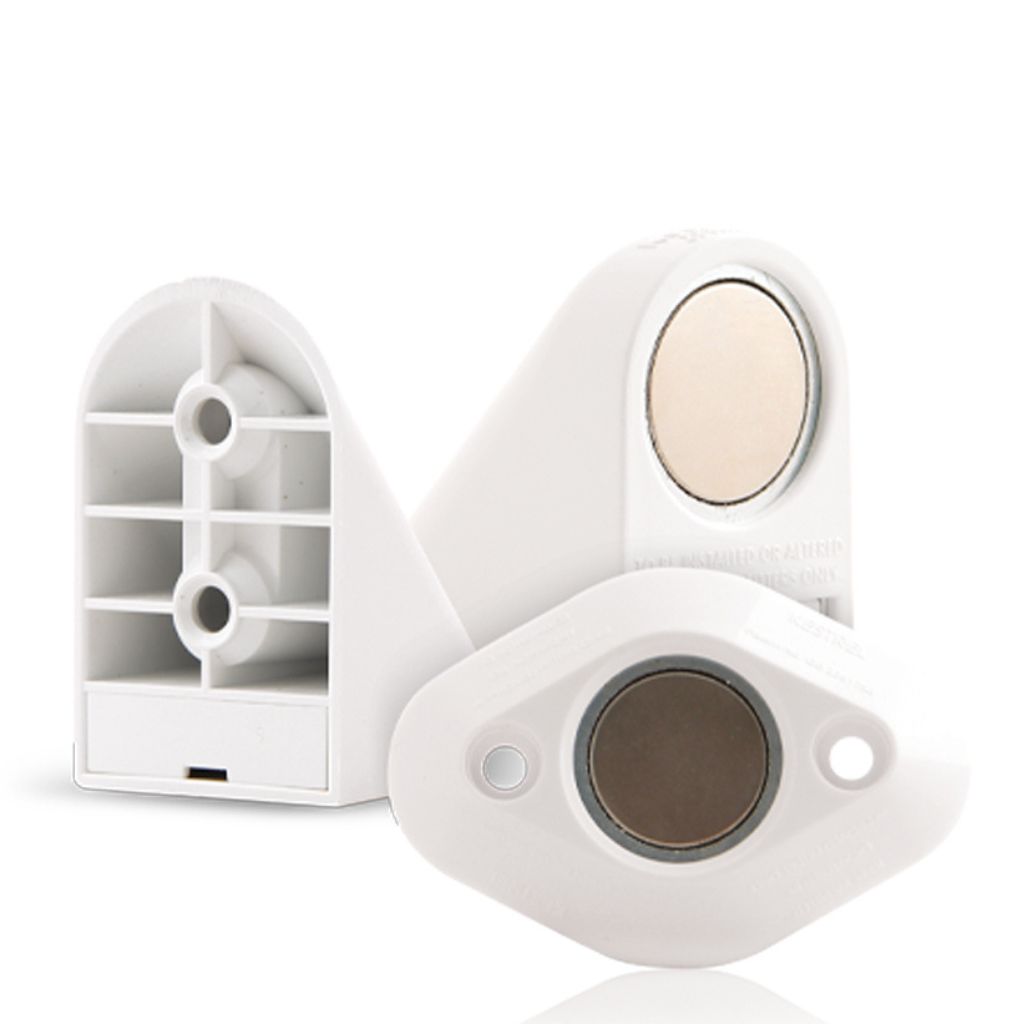

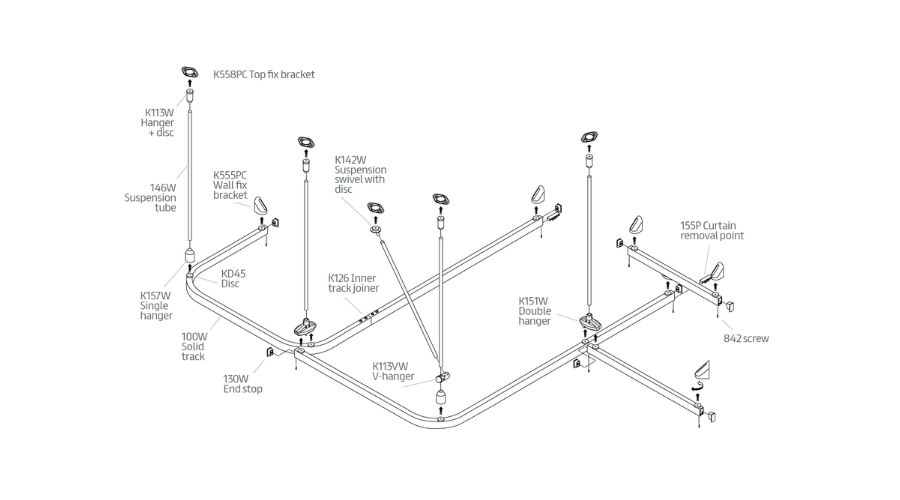

The system uses magnetic wall-fix brackets where tracks meet the wall and magnetic top-fix brackets where suspension hangers meet the ceiling. Under excessive load, the hanger separates from the bracket, removing the vertical suspension point that could otherwise be used as a ligature.
This controlled load-release mechanism provides a fail-safe approach to patient safety while maintaining the structural stability required for everyday ward use.
The rigid aluminium track profile ensures consistent operation and long-term reliability in demanding clinical environments.
Reliable Operation & Infection Control
Kestrel® tracking incorporates self-lubricating wheeled roller runners to provide smooth curtain movement and long-term durability.
Curtain removal points are included as standard on every track section, allowing curtains to be replaced quickly while supporting infection control procedures.
Tracks can be ceiling or wall fixed using magnetic bracket systems and are compatible with antimicrobial curtain options where required.
The premium aluminium profile provides a strong yet discreet installation suitable for healthcare facilities worldwide.
Ready to Specify Anti-Ligature Cubicle Tracking?
We’ll respond within 48 hours with tailored specification support.
Frequently Asked Questions
Got a question about anti-ligature tracking? Here are answers to common specification queries.
System Design & Applications
Anti-ligature curtain tracks are typically specified in healthcare environments where patient safety requires the removal of fixed ligature points.
Design considerations typically include:
- Curtain replacement and infection control procedures
- Magnetic load-release bracket configuration
- Colour finishes to match interior schemes
- Track span and suspension layout
Systems are supplied in accordance with manufacturer specifications and installed by trained professionals to ensure performance and compliance.
|
Feature
|
Detail
|
|---|---|
|
Track Material |
Premium grade aluminium |
|
Maximum Span |
Up to 2.5m between hangers |
|
Fixing Method |
Magnetic wall-fix and top-fix brackets |
|
Operation |
Self-lubricating roller runners |
|
Fixings |
Ceiling fixed, suspended or wall mounted |
|
Curtain Removal |
Press-slide removal point |
|
Finishes |
Silver anodised or powder coated |
|
Options |
Biosafe antibacterial finish |
Why Enviroscreen?
With over 30 years’ experience, Enviroscreen supports healthcare providers and contractors delivering specialist cubicle tracking systems across the UK.
Our ISO 9001-certified and CHAS-accredited teams provide structured specification support, compliant installation and documented handover.
We focus on safe installation, coordinated delivery and long-term reliability across healthcare environments.
Specify Anti-Ligature Tracking with Confidence
Specialist healthcare cubicle tracking installed safely and compliantly.
